제품 세부 정보
Place of Origin: Zhejiang, China
브랜드 이름: JG
인증: FDA certificate
Model Number: GNZ
지불 및 배송 조건
Minimum Order Quantity: 1pcs
가격: USD
Packaging Details: white box
Delivery Time: 3~10DAYS
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 1000PCS
Product name: |
GNZ Wave Spring Pump |
Size: |
18~100mm |
Application: |
Chemical Industry Seal |
HS code: |
8484200090 |
Metal parts: |
SS304,SS316,904L, Titan |
Pressure: |
up to 2.5Mpa |
Temperature: |
-20°C to +180°C |
Speeds: |
15m/s |
Product name: |
GNZ Wave Spring Pump |
Size: |
18~100mm |
Application: |
Chemical Industry Seal |
HS code: |
8484200090 |
Metal parts: |
SS304,SS316,904L, Titan |
Pressure: |
up to 2.5Mpa |
Temperature: |
-20°C to +180°C |
Speeds: |
15m/s |

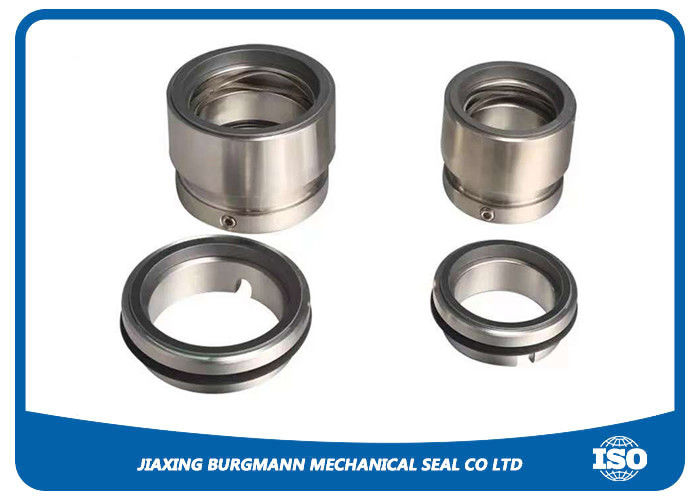

GNZ Wave Spring Pump Seal Chemical Industry Seal
The GNZ Wave Spring Pump Seal is a high-performance mechanical sealing solution engineered for demanding chemical industry applications. Featuring an innovative wave spring design, it delivers superior axial flexibility and reliable sealing performance in aggressive media, including acids, alkalis, and solvents. The corrosion-resistant seal faces (SiC, WC, or PTFE-coated options) ensure extended service life under high-speed (≤4500 RPM) and medium-pressure (≤15 bar) conditions. Its compact, clog-resistant structure minimizes maintenance downtime while preventing leakage in critical processes. Ideal for centrifugal, dosing, and API-process pumps, this seal complies with international standards (ISO 21049/API 682) for safe and efficient operation in corrosive environments.
Operating Limited:
| Shaft diameter | 18~100mm |
| Pressure | up to 2.5Mpa |
| Temperature | -20~180°C |
| Slidingvelocity | 15m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, 904L |
| Stationary Ring | Car / SIC /TC/Cer |
Advantages:
1. wear resistant
2. superior sealing effects
3. low friction
4. easy replacement
5. customized mold
6. quality management system
7. exquisite packaging
8. wide application
9. drawing will be provided for free with mass production
Application:
Acid/Alkali Transfer Pumps (Sulfuric acid, hydrochloric acid, NaOH, etc.)
Solvent Processing Systems (methanol, and other organic solvents)
High-Crystallization Fluids (Wave spring resists clogging from crystal buildup)
API-Compliant Process Pumps (Certified to ISO 21049/API 682 standards)
High-Temperature Chemical Circulation (Supports ≤200°C with flush plans)
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
◆ OEM/ODM orders are available for our factory
◆ Accept customized mechanical seals according to your drawing or requirements
◆ Small quantity is accepted
◆ Provides excellent quality with competitive price
